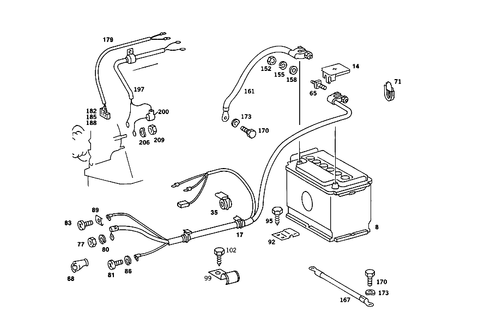

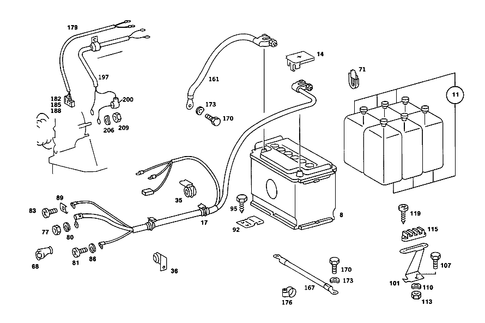

Battery, Starter/Alternator Cable for 1985 Mercedes-Benz 380SE

Description: To 001 541 79 01. For uncharged battery 72 ah, 74 ah. 66 ah.

Description: Right.

Description: Pos. Cable to starting motor.

Description: Starting cable thru unit partition panel.

Description: M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.

Description: M5X6
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 1mm. Cable to starting motor,terminals 50 and 15a. Main cable harness to heater-plug starting switch. Bracket mounting. Cd changer. Control module mounting.

Description: Positive cable to side member.

Description: Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.

Description: Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.

Description: From battery neg. Pole to ground. From battery to frame.

Description: From side member to engine. From engine to frame. Frame to body. Motor to sliding sunroof segment. From cross member to engine.

Description: Refrigerant compressor to support.

Description: Cable connector 3-pole. 3-pin.

Description: 756. 1.0-2.5 mm2 ff6.3. Radio. 1.0-2.5 mm2 ff6.3. Engine hood. 1.0-2.5 mm2 ff6.3. Parking brake switch. 1.0-2.5 mm2 ff6.3.

Description: For terminal at generator d pos. For terminal to generator d pos. Over interference suppressor terminals 61 and 87. Cap (over cable connection screw at generator, terminals d + and df). For cable harness at generator.

Description: Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.

Description: Master cylinder to brake booster. Rear bumper to rear body panel cross member. Electric cable to alternator. Pedal assembly to fire wall. Front bumper to cross member. Armrest to backrest. Bracket to bumper. Left stiffening to right stiffening. On front door,bottom.

Description: Not filled.

Description: Filled.

Description: Filled.

Description: Hybrid 100 ah. To 001 541 80 01,002 541 86 01. To 88 ah/92 ah.

Description: Brake lining wear indicator cable to rear axle. Additional cable harness to wheelhouse panel. Wiring harness. Electric cable and brake hose.

Description: Main cable harness to left torsion bar bearing covering.

Description: Automatic air conditioner. Electric cable for 2 alternators.

Description: Electric cable for 2 alternators.

Description: Antenna splitter to operating unit a28/1,. 1-pin ff6.3model 1: ffmodel 2: 6.3slots: 1. Connector, backup camera x169. 1-pin ff6.3model 1: ffmodel 2: 6.3slots: 1. Operating unit a40/3. 1-pin ff6.3model 1: ffmodel 2: 6.3slots: 1. UNIPOLAR. 1-PIN FF6.3Model 1 ...

Description: TO 008 545 34 28/ 35 28/ 36 28. 0.5 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.

Description: Series resistor. 1-pin ff6.3. Interior/sound system connector x18/4,. 1-pin ff6.3. Back-up light switch plug connection. 1-pin ff6.3. Unipolar. 1-pin ff6.3.

Description: Charge control lamp used for second alternator w5/1,2-12v 1,2w. 12v-1.2w model 1: w5/1,2w volt: 12v watt: 1,2w. Cigar lighter. 12v-1.2w model 1: w5/1,2w volt: 12v watt: 1,2w. Three-hole mounting w5/1,2-12v 1,2w. 12v-1.2w model 1: w5/1,2w volt: 12v watt: 1, ...

Description: Hybrid 12v/74 ah.

Description: ELECTRONIC CABLE TO STARTING CABLE
Diameter: 6mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm. POSITIVE CABLE TO BATTERY
Diameter: 6mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm.

Description: Cable to terminal b+. Positive cable to battery.
