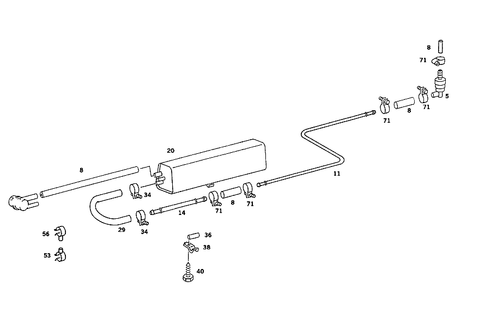

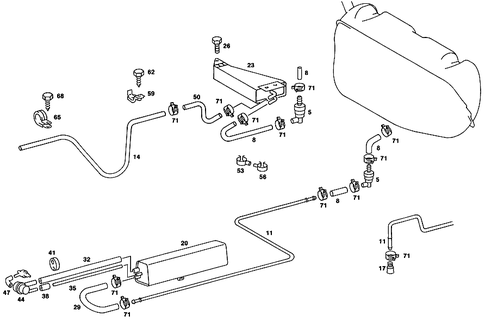

Closed Fuel-Evaporation-Control System for 1985 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
8
Hose
Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
MSRP $32.50
$24.77
MSRP $32.50
$24.77
20
Activated Charcoal Filter Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 033 045737
29
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Breather line to tank vent pipe 120 mm. Ventilation. (vent line) from activated charcoal filter to boot 590 mm. 50mm. Breather line to tank breather pipe, 80 mm. Rear breather line to vent valve 190 mm. (vent line) from activated charcoal filter to boot 630 mm. From activated charcoal filter to breather line 210 mm. From activated charcoal filter to breather line 250 mm. Return 240 mm.
29
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
MSRP $24.50
$18.42
MSRP $24.50
$18.42
34
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Return line to radiator. From steering to cooling pipe. Connection piece. Hose to radiator 15.5 mm. Hose to pipe. From pump to steering. Low pressure hose. From return line to fuel tank. Oil connection hose.
38
Clamp Mercedes-Benz
Mercedes-Benz Description: Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
40
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
MSRP $1.70
$1.27
MSRP $1.70
$1.27
53
MSRP $3.70
$2.79
56
MSRP $5.50
$4.06
No.
Part # / Description / Price
Price
8
Hose Mercedes-Benz
Mercedes-Benz Description: Breather line to breather valve. From tank vent pipe to dearator valve.
8
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
MSRP $32.50
$24.77
MSRP $32.50
$24.77
71
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Cexpansion reservoir to activated charcoal filter 9- 13 mm. 9-13 mm. Fuel hose to filter 9- 13 mm. 9-13 mm. Return line 9- 13 mm. 9-13 mm. Fuel hose to fuel line. 9-13 mm. From activated charcoal filter to breather line. 9-13 mm. Oil connection hose. 9-13 mm.
MSRP $3.50
$2.67
MSRP $3.50
$2.67
71
Spring Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Hose to fuel tank. Suction hose to induction line. Feed and return lines, breathing. From fuel tank to breather valve. (vent line) from activated charcoal filter to boot. Vent pipe fuel tank to t-fitting or vent valve. Vent hose to activated charcoal filter.
MSRP $3.00
$2.29
MSRP $3.00
$2.29
71
Clamp Mercedes-Benz
Mercedes-Benz Description: FUEL HOSE TO RETURN LINEDiameter: 13mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM FUEL FILTER TO FEED LINEDiameter: 13mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM FUEL PUMP TO FILTERDiameter: 13mmMaterial thickness: 0,4mmWidth across ...
MSRP $6.75
$5.08
MSRP $6.75
$5.08
71
Spring Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Between combination valve and breather pipe. Regeneration valve. Return hose to return line. From fuel tank to breather valve.
MSRP $4.00
$3.05
MSRP $4.00
$3.05
